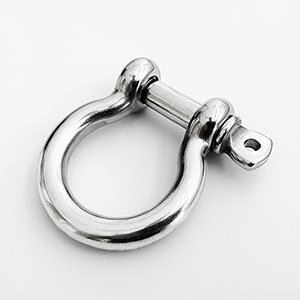

Bow Shackle

Item Number: 304
Size: M4-M25
Material: AISI304 / AISI316
Product Description: Bow shackle is the most widely used kind of rigging hardware because of its reasonable design and lower price. Usually we have a large inventory of them. It's made by forging, so it offers a greater load strength.

Product Specifications

Size(M)	C	H	W	F	D	BL	WT
mm	mm	mm	mm	mm	mm	kg	kg
M4	4	16	8	12	8	500	0.010
M5	5	20	10	15	10	800	0.020
M6	6	24	12	18	12	1100	0.030
M8	8	32	16	24	16	2000	0.080
M10	10	40	20	30	20	3200	0.130
M12	12	48	24	36	24	4400	0.224
M14	14	56	28	42	28	5600	0.346
M16	16	64	32	48	32	8000	0.370
M20	20	80	40	60	40	10000	0.980
M22	22	88	44	66	44	15000	1.350
M25	25	100	51	75	50	20000	2.200
