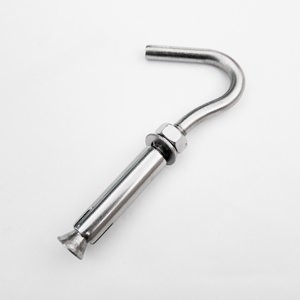

Expansion Anchors With Hook
- Item Number: 525
- Size: M6-M12
- Material: AISI304 / AISI316
- Product Description: Expansion anchors with hook is suitable for use in concrete, brick and natural stone, turning the nut pulls the working end of the sleeve anchor up through the sleeve, expanding and anchoring itself securely in the concrete, brick or block.
Product Specifications
Size | B | S | L | F |
---|---|---|---|---|
mm | mm | mm | mm | mm |
M6 | 39 | 9.6 | 88 | 20 |
M8 | 44 | 11.5 | 99 | 28 |
M10 | 46 | 13.5 | 105 | 30 |
M12 | 60 | 17.8 | 135 | 50 |
