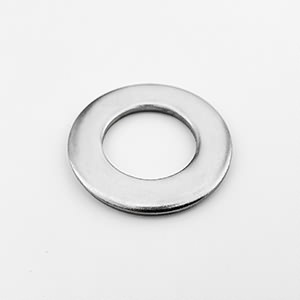

Flat Washer DIN125
- Item Number: 573
- Size: M3-M30
- Material: AISI304 / AISI316
- Product Description: Flat washer DIN125 can increase the contact area between the screw and the machine and eliminate the damage of the spring pad to the machine surface when the screw is unloaded.
Product Specifications
Size | ΦA | T | D |
---|---|---|---|
mm | mm | mm | mm |
M3 | 3.2 | 0.5 | 7 |
M4 | 4.3 | 0.8 | 9 |
M5 | 5.3 | 1 | 10 |
M6 | 6.4 | 1.5 | 12 |
M8 | 8.4 | 1.5 | 16 |
M10 | 10.5 | 2 | 20 |
M12 | 13 | 2.5 | 24 |
M14 | 15 | 2.5 | 28 |
M16 | 17 | 3 | 30 |
M18 | 19 | 3 | 34 |
M20 | 21 | 3 | 37 |
M22 | 23 | 3 | 39 |
M24 | 25 | 4 | 44 |
M27 | 28 | 4 | 50 |
M30 | 31 | 4 | 56 |
