NOTE
※ Please be aware that there may be deviation and tolerance in noted measurements.
※ The breaking load is approximate, and will change depending on usage situation and environment. In addition, in the event test data is required, please make a separate request, and extra cost will be generated.
※ Specifications may change without prior notification.
※ Photos could show our products very clearly, but there may be a little difference in style because of different specifications.
※ Please do not copy and reproduce the contents of our website without any express permission.

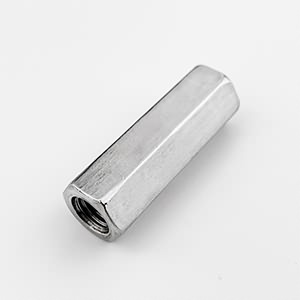

Long Hexagon Nut DIN6334
- Item Number: 565
- Size: M6-M20
- Material: AISI304 / AISI316
- Product Description: Long hexagon nut DIN6334 is suitable for all interior and exterior applications. It can be used to attach long studs or threaded rods. Need allen (hex) key when using it.
Product Specifications
Size(A) | S | L |
---|---|---|
mm | mm | mm |
M6 | 10 | 12-20 |
M8 | 13 | 12-50 |
M10 | 17 | 15-50 |
M12 | 19 | 15-50 |
M14 | 22 | 30-40 |
M16 | 24 | 30-48 |
M20 | 30 | 30-60 |
