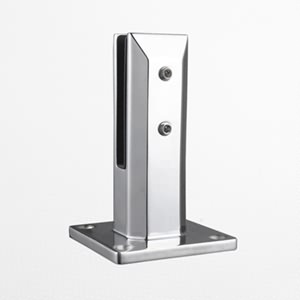

Square Frameless Glass Spigot

Square Frameless Glass Spigot
  • Item Number: 908
  • Size: T=5mm-20mm
  • Material: 304/316/2205
  • Product Description: Square frameless glass spigot is used to support glass panels for frameless glass pool fencing. It comes with 4 holes in its base plate that is simple to screw into the surface of your project. The surface mount clamps the glass from both sides—there is no need for pre-drilled holes, which also makes the surface mount glass spigot a cost-effective option.
Product Specifications
Spider With 4 Arms Drawing
Size L A B H M E D C F I K
mm mm mm mm mm mm mm mm mm mm mm mm
200 200 18 28 50 24 12 45 26 45 18 37
220 220 18 28 50 25 14 45 26 50 18 37
250 250 18 28 50 25 15 45 26 50 18 37
300 300 18 28 50 32 18 45 26 60 20 37
