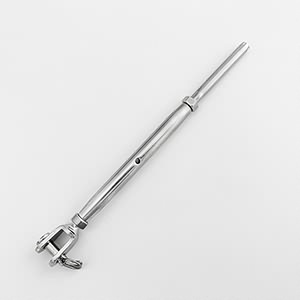

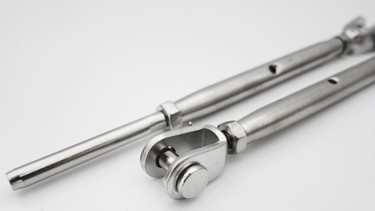

Pipe Turnbuckle With Fork And Terminal
- Item Number: 217
- Size: 3mm-10mm
- Material: AISI304 / AISI316
- Product Description: Pipe turnbuckle with fork and terminal is used to connect wire rope and rigging hardware. Wire rope should put into the terminal end and press tight.
Product Specifications
RopeΦ | A | B | D | W | H | L |
---|---|---|---|---|---|---|
mm | mm | mm | mm | mm | mm | mm |
3 | M6 | 90 | 5 | 9 | 9 | 170 |
4 | M8 | 110 | 6 | 10 | 10 | 200 |
5 | M10 | 120 | 8 | 11 | 10 | 230 |
6 | M12 | 150 | 10 | 11 | 14 | 280 |
8 | M16 | 190 | 12 | 15 | 18 | 340 |
10 | M20 | 220 | 15 | 24 | 30 | 420 |
