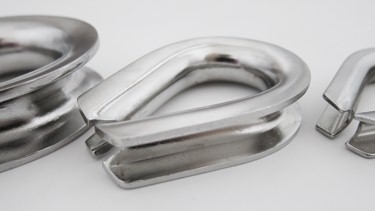

US Type Wire Thimble G414

Item Number: 111
Size: 1/4-1 1/4
Material: AISI304 / AISI316
Product Description: US type wire rope thimble G414 is widely used in USA. It offers a greater load strength than G411 type.Please choose the corresponding specifications according to the diameter of the wire rope.

Product Specifications

Rope(ΦA)	B	C	H	S	L	WT	Price
inch	inch	inch	inch	inch	inch	lbs	SS304	SS316
1/4	1.63	.88	1.50	.06	2.19	0.067	$0.26	$0.38
5/16	1.88	1.06	1.81	.08	2.50	0.112	$0.42	$0.63
3/8	2.13	1.13	2.13	.11	2.88	0.250	$0.80	$1.20
7/16	2.38	1.25	2.38	.13	3.25	0.300	$0.89	$1.33
1/2	2.75	1.50	2.75	.14	3.63	0.510	$1.73	$2.58
9/16	2.75	1.50	2.69	.14	3.63	0.510	$1.73	$2.58
5/8	3.25	1.75	3.13	.16	4.25	0.750	$2.06	$3.08
3/4	3.75	2.00	3.81	.22	5.00	1.470	$4.41	$6.62
7/8	4.25	2.25	4.25	.22	5.50	1.750	$5.52	$8.28
1	4.50	2.50	4.94	.25	6.13	2.750	$8.82	$13.24
1 1/8-1 1/4	5.13	2.88	5.88	.25	7.00	4.000	$13.55	$20.33
