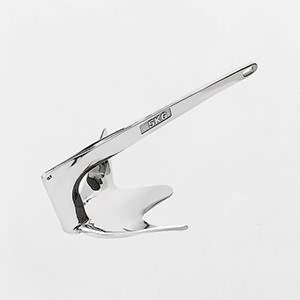

Bruce Anchor
- Item Number: 830
- Size: 1kg-80kg
- Material: AISI316
- Product Description: Bruce anchor is designed based on anchors used to secure oil rigs in the North Sea. The bruce anchor is constructed of high-grade stainless steel. It sets effortlessly and holds in a variety of sea beds and stows easily on the bow roller of most boats.
Product Specifications
Size(Weight) | A | B | H |
---|---|---|---|
kg | mm | mm | mm |
1 | 274 | 174 | 100 |
2 | 350 | 220 | 125 |
2.5 | 400 | 230 | 150 |
3 | 391 | 254 | 145 |
5 | 470 | 305 | 180 |
7.5 | 538 | 345 | 200 |
10 | 593 | 388 | 225 |
15 | 677 | 440 | 260 |
20 | 745 | 520 | 288 |
25 | 805 | 560 | 305 |
30 | 855 | 585 | 335 |
40 | 923 | 634 | 384 |
50 | 1000 | 685 | 380 |
80 | 1110 | 755 | 460 |
