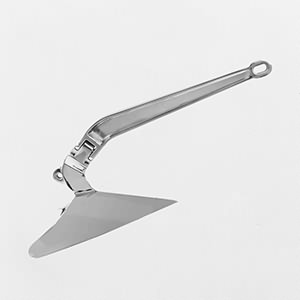

Plough Anchor
- Item Number: 830
- Size: 5kg-80kg
- Material: AISI316
- Product Description: Plough anchor makes your anchoring experience easier with its innovative self-launching design. The plough anchor’s low center of gravity, shank profile, and ballasted tip allows it to set itself and set immediately. With its self-righting technology, plough anchor sets correctly and can reset itself if necessary.
Product Specifications
Size(Weight) | A | B | C | H |
---|---|---|---|---|
kg | mm | mm | mm | mm |
5 | 470 | 242 | 350 | 252 |
7 | 504 | 265 | 395 | 250 |
9 | 571 | 290 | 420 | 305 |
10 | 575 | 298 | 423 | 305 |
12 | 650 | 298 | 423 | 305 |
15 | 687 | 325 | 558 | 355 |
16 | 687 | 325 | 558 | 355 |
20 | 713 | 375 | 560 | 355 |
22 | 720 | 360 | 560 | 355 |
27 | 780 | 405 | 605 | 393 |
34 | 835 | 645 | 653 | 465 |
35 | 810 | 395 | 695 | 425 |
40 | 810 | 645 | 653 | 450 |
50 | 965 | 540 | 745 | 500 |
