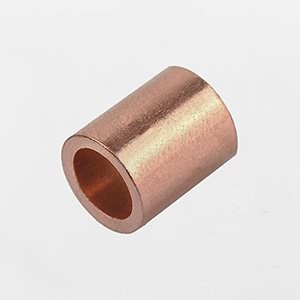

Copper Stop Sleeve
- Item Number: 134
- Size: 3/64"-5/16"
- Material: Copper
- Product Description: Copper stop sleeve can fit wire sizes from 3/64" to 5/16" for every project. Please choose the corresponding specifications according to the diameter of the wire rope.
Product Specifications
RopeΦ | A | S | L | WT |
---|---|---|---|---|
inch | mm | mm | mm | kg/1000PCS |
3/64 | 1.54 | 1.39 | 5.56 | 0.670 |
1/16 | 1.98 | 1.59 | 5.56 | 0.960 |
3/32 | 2.78 | 2.78 | 8.33 | 3.900 |
1/8 | 3.97 | 2.18 | 8.33 | 3.300 |
5/32 | 4.76 | 2.98 | 8.33 | 6.500 |
3/16 | 5.56 | 2.58 | 8.33 | 6.200 |
7/32 | 6.35 | 2.19 | 15.88 | 8.500 |
1/4 | 7.14 | 4.77 | 17.46 | 32.000 |
5/16 | 9.53 | 3.57 | 17.46 | 29.000 |
