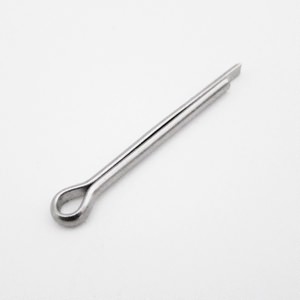

Cotter Pins GB91

Item Number: 608
Size: 0.6mm-12mm
Material: AISI304 / AISI316
Product Description: Cotter pin GB91 is a metal fastener with two tines that are bent during installation, frequently used to secure other fasteners such as clevis pin.

Product Specifications

Size	ΦD(max)	C(max)	B	A(max)	L
mm	mm	mm	mm	mm	mm
0.6	0.5	1	2	1.6	4-12
0.8	0.7	1.4	2.4	1.6	5-16
1	0.9	1.8	3	1.6	6-20
1.2	1	2	3	2.5	8-26
1.6	1.4	2.8	3.2	2.5	8-32
2	1.8	3.6	4	2.5	12-50
2.5	2.3	4.6	5	2.5	12-50
3.2	2.9	5.8	6.4	3.2	14-65
4	3.7	7.4	8	4	18-80
5	4.6	9.2	10	4	22-100
6.3	5.9	11.8	12.6	4	30-120
8	7.5	15	16	4	40-160
10	9.5	19	20	6.3	45-200
12	11.4	24.8	26	6.3	70-200
