NOTE

※ Please be aware that there may be deviation and tolerance in noted measurements.

※ The breaking load is approximate, and will change depending on usage situation and environment. In addition, in the event test data is required, please make a separate request, and extra cost will be generated.

※ Specifications may change without prior notification.

※ Photos could show our products very clearly, but there may be a little difference in style because of different specifications.

※ Please do not copy and reproduce the contents of our website without any express permission.

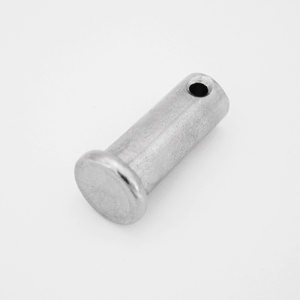

Clevis Pin

Clevis Pin
  • Item Number: 607
  • Size: 5mm-15mm
  • Material: AISI304 / AISI316
  • Product Description: Clevis pin is designed to allow the rotation or swivel of the connected parts about the axis of the pin, commonly used with a split cotter pin.
Product Specifications
Clevis Pin Drawing
Size(ΦD) L A T H
mm mm mm mm mm
5 21 8 2 16
6 24 9 2 19
8 26 11 2 21
10 28 13 3 22
12 38 16 3 30
15 48 22 3 40
