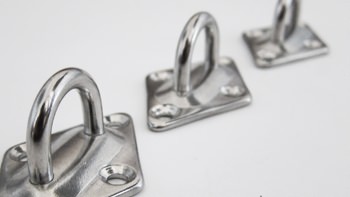

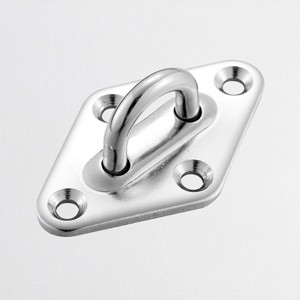

Dimond Eye Plate
- Item Number: 706
- Size: 5mm-8mm
- Material: AISI304 / AISI316
- Product Description: Dimond eye plate is commonly used as deck fittings on boats and yachts, hard-wearing and versatile with uses ranging from vehicle trailers to home DIY.
| Size(ΦD) | A | B | H | W | T | d | WT | Price | |
|---|---|---|---|---|---|---|---|---|---|
| mm | mm | mm | mm | mm | mm | mm | kg | SS304 | SS316 |
| 5 | 60 | 37 | 13 | 15 | 2.5 | 4.2 | 0.032 | $0.35 | $0.50 |
| 6 | 65 | 40 | 18 | 20 | 2.5 | 5.2 | 0.044 | $0.45 | $0.60 |
| 8 | 80 | 50 | 20 | 22 | 3 | 5.2 | 0.075 | $0.70 | $1.00 |
-
