NOTE
※ Please be aware that there may be deviation and tolerance in noted measurements.
※ The breaking load is approximate, and will change depending on usage situation and environment. In addition, in the event test data is required, please make a separate request, and extra cost will be generated.
※ Specifications may change without prior notification.
※ Photos could show our products very clearly, but there may be a little difference in style because of different specifications.
※ Please do not copy and reproduce the contents of our website without any express permission.

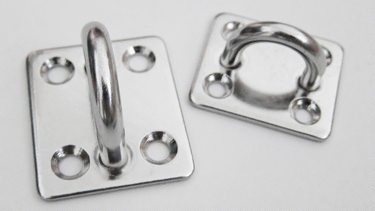

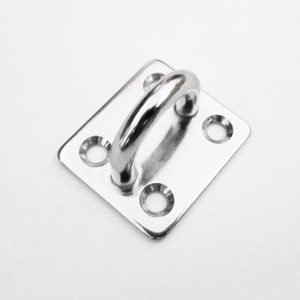

Eye Plate
- Item Number: 703
- Size: 4mm-16mm
- Material: AISI304 / AISI316
- Product Description: Eye plate is commonly used as deck fittings on boats and yachts, hard-wearing and versatile with uses ranging from vehicle trailers to home DIY.
Product Specifications
Size(ΦD) | A | B | d | W | H | T | WT | Price | |
---|---|---|---|---|---|---|---|---|---|
mm | mm | mm | mm | mm | mm | mm | kg | SS304 | SS316 |
4 | 25 | 28 | 3 | 11.5 | 10 | 2 | 0.013 | $0.27 | $0.35 |
5 | 30 | 35 | 4.2 | 15 | 12 | 2.5 | 0.023 | $0.36 | $0.48 |
6 | 35 | 40 | 5.2 | 19 | 17 | 2.5 | 0.035 | $0.45 | $0.60 |
8 | 40 | 50 | 5.2 | 22 | 21 | 3 | 0.065 | $0.65 | $0.88 |
10 | 42 | 58 | 5.2 | 28 | 24 | 4 | 0.105 | $0.90 | $1.30 |
12 | 54 | 75 | 5.8 | 36 | 31 | 4.8 | 0.224 | $1.80 | $2.60 |
14 | 60 | 85 | 8 | 40 | 38 | 5 | 0.327 | $2.50 | $3.40 |
16 | 65 | 95 | 10 | 45 | 43 | 6 | 0.473 | $4.00 | $5.00 |
