NOTE

※ Please be aware that there may be deviation and tolerance in noted measurements.

※ The breaking load is approximate, and will change depending on usage situation and environment. In addition, in the event test data is required, please make a separate request, and extra cost will be generated.

※ Specifications may change without prior notification.

※ Photos could show our products very clearly, but there may be a little difference in style because of different specifications.

※ Please do not copy and reproduce the contents of our website without any express permission.

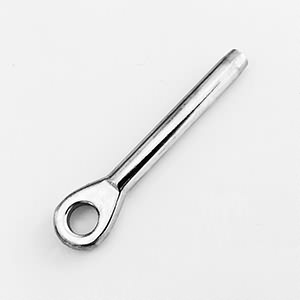

Eye Terminal

Eye Terminal
  • Item Number: 116
  • Size: 3mm-10mm
  • Material: AISI304 / AISI316
  • Product Description: Swage eye terminal fittings are used to put tension onto a wire, and mainly used as an attachment to rigging screws or forks.
Product Specifications
Eye Terminal Drawing

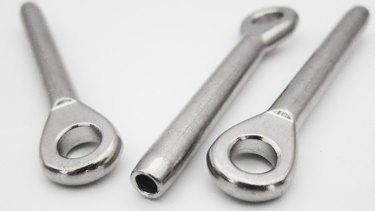

Eye Terminal Detail
RopeΦ D G L
mm mm mm mm
3 6.5 6.5 55
4 8.5 7.5 65
5 10.5 9 80
6 12.5 12.5 94
8 14.5 16 124
10 16.5 18 142
