NOTE

※ Please be aware that there may be deviation and tolerance in noted measurements.

※ The breaking load is approximate, and will change depending on usage situation and environment. In addition, in the event test data is required, please make a separate request, and extra cost will be generated.

※ Specifications may change without prior notification.

※ Photos could show our products very clearly, but there may be a little difference in style because of different specifications.

※ Please do not copy and reproduce the contents of our website without any express permission.

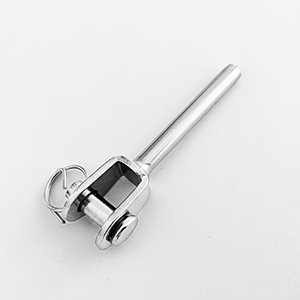

Fork Terminal

Fork Terminal
  • Item Number: 115
  • Size: 3mm-10mm
  • Material: AISI304 / AISI316
  • Product Description: Swage fork terminal fittings are one of the most commonly used wire rope end fittings, they are normally attached to pre-drilled anchor plates or steel constructions.
Product Specifications
Fork Terminal Drawing

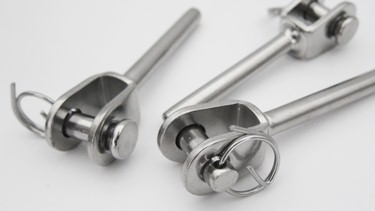

Fork Terminal Detail
RopeΦ A D G L
mm mm mm mm mm
3 9 5 6.5 65
4 10 6 7.5 77
5 10 8 9 88
6 11 10 12.5 106
8 14 12 16 145
10 23 15 18 150
