NOTE
※ Please be aware that there may be deviation and tolerance in noted measurements.
※ The breaking load is approximate, and will change depending on usage situation and environment. In addition, in the event test data is required, please make a separate request, and extra cost will be generated.
※ Specifications may change without prior notification.
※ Photos could show our products very clearly, but there may be a little difference in style because of different specifications.
※ Please do not copy and reproduce the contents of our website without any express permission.

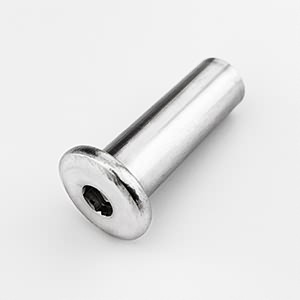

Hexagon Socket Flat Head Clamp Nut
- Item Number: 567
- Size: M3-M8
- Material: AISI304 / AISI316
- Product Description: Hexagon socket flat head clamp nut is suitable for all interior and exterior applications. Need allen (hex) key when using it.
Product Specifications
Size(A) | ΦD | K | S | Φd | L | H |
---|---|---|---|---|---|---|
mm | mm | mm | mm | mm | mm | mm |
M3 | 8 | 1.5 | 2.5 | 4 | 6-30 | 4-8 |
M4 | 8 | 2 | 2.5 | 5 | 8-30 | 5-20 |
M5 | 10 | 2.5 | 3 | 6 | 6-35 | 4-25 |
M6 | 13 | 3 | 4 | 8 | 6-70 | 4-30 |
M8 | 16 | 3 | 5 | 10 | 12-40 | 8-30 |
