NOTE
※ Please be aware that there may be deviation and tolerance in noted measurements.
※ The breaking load is approximate, and will change depending on usage situation and environment. In addition, in the event test data is required, please make a separate request, and extra cost will be generated.
※ Specifications may change without prior notification.
※ Photos could show our products very clearly, but there may be a little difference in style because of different specifications.
※ Please do not copy and reproduce the contents of our website without any express permission.

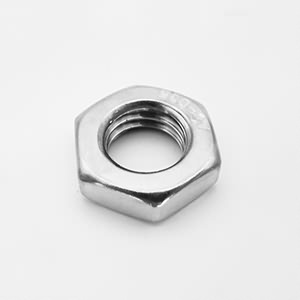

Hexagon Thin Nut DIN439-2
- Item Number: 568
- Size: M3-M30
- Material: AISI304 / AISI316
- Product Description: Hexagon thin nut DIN439-2 is suitable for all interior and exterior applications. Need allen (hex) key when using it.
Product Specifications
Size(A) | S | M |
---|---|---|
mm | mm | mm |
M3 | 5.5 | 1.8 |
M4 | 7 | 2.2 |
M5 | 8 | 2.7 |
M6 | 10 | 3.2 |
M8 | 13 | 4 |
M10 | 17 | 5 |
M12 | 19 | 6 |
M14 | 22 | 7 |
M16 | 24 | 8 |
M18 | 27 | 9 |
M20 | 30 | 10 |
M22 | 32 | 11 |
M24 | 36 | 12 |
M27 | 41 | 13.5 |
M30 | 46 | 15 |
