NOTE
※ Please be aware that there may be deviation and tolerance in noted measurements.
※ The breaking load is approximate, and will change depending on usage situation and environment. In addition, in the event test data is required, please make a separate request, and extra cost will be generated.
※ Specifications may change without prior notification.
※ Photos could show our products very clearly, but there may be a little difference in style because of different specifications.
※ Please do not copy and reproduce the contents of our website without any express permission.

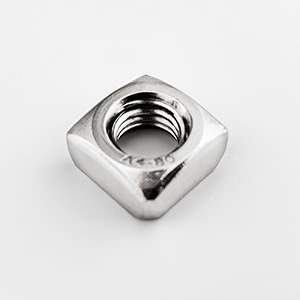

Square Nut DIN557
- Item Number: 569
- Size: M3-M12
- Material: AISI304 / AISI316
- Product Description: Square nut DIN557 is suitable for all interior and exterior applications. Need socket wrench when using it.
Product Specifications
Size(A) | S | M |
---|---|---|
mm | mm | mm |
M3 | 5.5 | 2.4 |
M4 | 7 | 3 |
M5 | 8 | 4 |
M6 | 10 | 5 |
M8 | 13 | 6.5 |
M10 | 17 | 8 |
M12 | 19 | 10 |
