NOTE
※ Please be aware that there may be deviation and tolerance in noted measurements.
※ The breaking load is approximate, and will change depending on usage situation and environment. In addition, in the event test data is required, please make a separate request, and extra cost will be generated.
※ Specifications may change without prior notification.
※ Photos could show our products very clearly, but there may be a little difference in style because of different specifications.
※ Please do not copy and reproduce the contents of our website without any express permission.

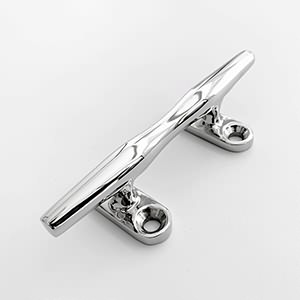

Hollow Base Cleat
- Item Number: 810
- Size: 4''-12''
- Material: AISI304 / AISI316
- Product Description: Hollow Base Cleat is made of marine grade 316 stainless steel,durable to use,corrosion resistance and sturdy in saltwater environment. High polished surface,mirror-like appearance to match modern watercraft/boat/yacht,more stylish.
Product Specifications
Size | A | B | C | D | E |
---|---|---|---|---|---|
inch | mm | mm | mm | mm | mm |
4'' | 102 | 36 | 25 | 48 | 22 |
5'' | 127 | 40 | 27 | 51 | 25 |
6'' | 152 | 46 | 31 | 57 | 26 |
8'' | 203 | 54 | 41 | 76 | 36 |
10'' | 254 | 65 | 50 | 90 | 44 |
12'' | 305 | 71 | 53 | 99 | 49 |
