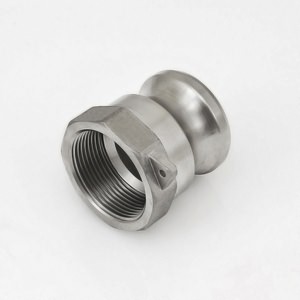

Female Adapter (A-type)

Female Adapter (A-type)
  • Item Number: 801
  • Size: 15mm-150mm
  • Material: AISI304 / AISI316
  • Product Description: Female adapter (A-type) quick connector is a male connector with no pull ears on either side. One end of the connector is directly connected to the female connector with pull ears, and the other end is connected with internal threads.
Product Specifications
Female Adapter Drawing
Size d0 D(Rc) H S
mm mm inch mm mm
15 21 1/2 38 33
20 21 3/4 38 33
25 24 1 47 40
32 29 1-1/4 54 50
40 37 1-1/2 54 55
50 46 2 63 67
65 57 2-1/2 79 83
80 75 3 72 98
100 98 4 79 125
125 122 5 85 154
150 150 6 86 190
