Coupling

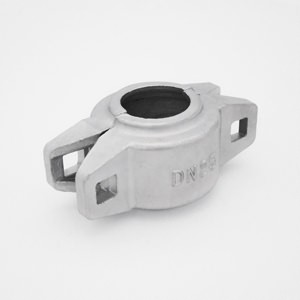

Coupling
  • Item Number: 809
  • Size: DN20-DN100
  • Material: AISI304 / AISI316
  • Product Description: Coupling is a groove type pipe clamp mainly used in industrial fields such as dairy products, beer, food, beverages, pharmaceuticals, biotechnology, etc.
Product Specifications
Coupling Drawing
Size A B E H WT
mm mm mm mm mm kg
DN20 81 41 9 25 0.260
DN25 95 43 10 29 0.370
DN32 100 43 12 32 0.370
DN40 116 43 12 35 0.500
DN50 124 43 12 42 0.650
DN65 145 43 12 49 0.735
DN80 170 46 12 58 1.000
DN100 200 49 12 72 1.520
