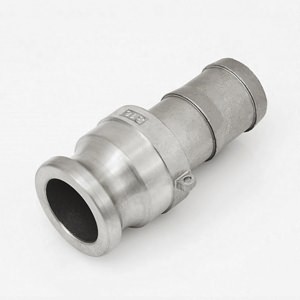

Shank Adapter (E-type)

Item Number: 805
Size: 15mm-150mm
Material: AISI304 / AISI316
Product Description: Shank Adapter (E-type) quick connector is a male connector that does not have a lug. It is usually used in conjunction with a quick connector with a lug to achieve quick connection and quick disassembly. One end of the connector is directly connected to the female head, while the other end is directly inserted into the leather tube or hose.

Product Specifications

Size	d0	C	H	D	h1
mm	mm	mm	mm	mm	mm
15	14	33	50	20	40
20	14	33	51	20	40
25	20	38	61	26	46
32	25	48	68	33	52
40	31	55	69	39	56
50	43	65	77	52	62
65	55	80	84	65	65
80	67	102	87	77	66
100	92	132	90	102	68
125	115	154	102	130	71
150	140	184	118	155	78
