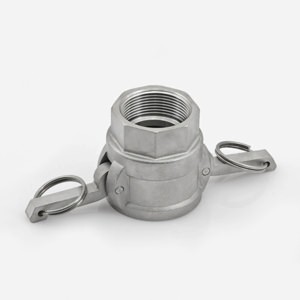

Female Coupler (D-type)

Item Number: 804
Size: 15mm-150mm
Material: AISI304 / AISI316
Product Description: Female coupler (D-type) quick connector is a female head with two pull ears on each side. The reason why it is called a D-type quick connector is because one end of it is directly connected with a pull tab for quick and convenient disassembly, while the other end is connected with an internal thread.

Product Specifications

Size	d0	D(Rc)	H	h1	G
mm	mm	inch	mm	mm	mm
15	17	1/2	50	33	53
20	20	3/4	51	33	53
25	25	1	61	39	62
32	32	1-1/4	68	45	80
40	40	1-1/2	69	48	87
50	50	2	77	52	97
65	63	2-1/2	84	55	110
80	75	3	87	56	135
100	100	4	90	58	165
125	122	5	102	62	185
150	145	6	118	72	220
