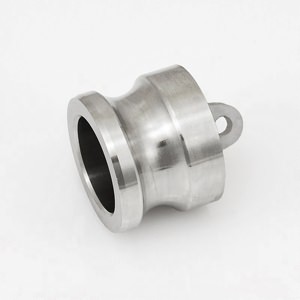

Dust Plug (DP-type)
- Item Number: 807
- Size: 15mm-150mm
- Material: AISI304 / AISI316
- Product Description: Dust plug (DP-type) quick connector can also be called a quick plug because it is in the form of a plug. It has one male end and only one end connected directly, while the other end is blocked.
Product Specifications
Size | d0 | H | h1 |
---|---|---|---|
mm | mm | mm | mm |
15 | 21 | 36 | 26 |
20 | 21 | 36 | 26 |
25 | 24 | 39 | 31 |
32 | 29 | 49 | 38 |
40 | 37 | 51 | 40 |
50 | 46 | 60 | 46 |
65 | 57 | 59 | 48 |
80 | 75 | 67 | 55 |
100 | 98 | 80 | 56 |
125 | 122 | 80 | 56 |
150 | 150 | 98 | 66 |
