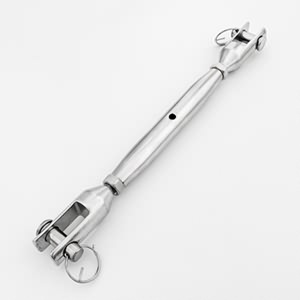

JIS Turnbuckle with Two Forks
- Item Number: 220
- Size: M5-M16
- Material: AISI304 / AISI316
- Product Description: Jis turnbuckle with two forks, also known as barrel strainers, tensioners, fork and fork rigging screws, bottle screws or adjusters. Simply take out the clevis pin from the rigging screw fork by removing the split ring.
Product Specifications
Size(A) | B | D | L | W | H |
---|---|---|---|---|---|
mm | mm | mm | mm | mm | mm |
M5 | 80 | 5 | 130-190 | 6.5 | 10 |
M6 | 90 | 6 | 155-225 | 7.5 | 10 |
M8 | 105 | 8 | 180-255 | 11 | 11 |
M10 | 125 | 9 | 210-300 | 12 | 14 |
M12 | 150 | 12 | 270-380 | 14 | 20 |
M14 | 170 | 12 | 295-415 | 15 | 22 |
M16 | 190 | 16 | 340-480 | 17 | 26 |
