NOTE

※ Please be aware that there may be deviation and tolerance in noted measurements.

※ The breaking load is approximate, and will change depending on usage situation and environment. In addition, in the event test data is required, please make a separate request, and extra cost will be generated.

※ Specifications may change without prior notification.

※ Photos could show our products very clearly, but there may be a little difference in style because of different specifications.

※ Please do not copy and reproduce the contents of our website without any express permission.

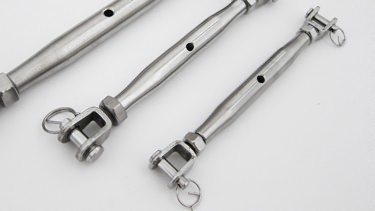

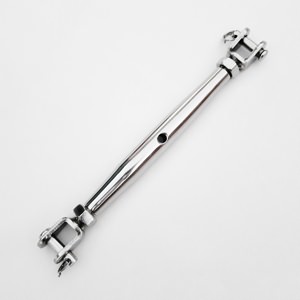

Pipe Turnbuckle With Two Forks

Item Number: 213
Size: M5-M20
Material: AISI304 / AISI316
Product Description: Pipe turnbuckle with two forks, also known as barrel strainers, tensioners, fork and fork rigging screws, bottle screws or adjusters. Simply take out the clevis pin from the rigging screw fork by removing the split ring.

Product Specifications

Size(A)	W	B	ΦD	L	BL	WT	Price
mm	mm	mm	mm	mm	kg	kg	SS304	SS316
M5	9	80	5	122-180	800	0.048	$1.50	$2.10
M6	9	90	5	137-210	800	0.084	$1.80	$2.50
M8	10	110	6	155-250	1800	0.122	$2.20	$3.00
M10	11	120	8	178-275	2000	0.206	$3.00	$4.20
M12	11	150	10	225-340	3400	0.305	$4.80	$6.60
M16	15	190	14	280-450	6400	0.844	$10.30	$14.50
M20	24	220	15	350-525	8000	1.480	$22.10	$30.90
