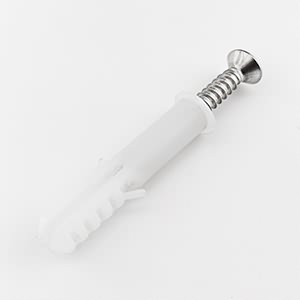

Plastic Anchor
- Item Number: 535
- Size: 5mm-12mm
- Material: SUS304/SUS316
- Product Description: Plastic anchor is suitable for use in concrete, brick and natural stone, turning the bolt directly and the anchor will expanding and anchor itself securely in the concrete, brick or block.
Product Specifications
ΦD | A | L1/L2 |
---|---|---|
mm | mm | mm |
5 | ST3.5 | 25 |
6 | ST3.9 | 30 |
7 | ST4.2 | 30 |
8 | ST4.8 | 40 |
10 | ST5.5 | 50 |
12 | ST6.3 | 60 |
