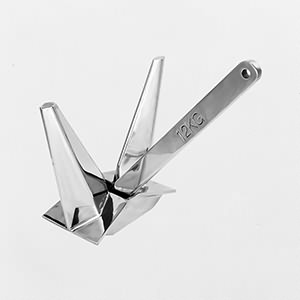

Pool Anchor
- Item Number: 835
- Size: 12kg-180kg
- Material: AISI316
- Product Description: Pool anchor is a stockless high holding power anchor which can reduce 25% of the weight compared to traditional anchors. It can come in fully balanced or standard models, but 95% of the time, a fully balanced one is supplied. Fully balanced means that the anchor flukes always return to their upright position, thereby ensuring that the anchor will not get stuck in the anchor pocket.
Product Specifications
Size(Weight) | L | A | B |
---|---|---|---|
kg | mm | mm | mm |
12 | 425 | 315 | 240 |
20 | 455 | 385 | 325 |
25 | 480 | 410 | 340 |
30 | 505 | 430 | 365 |
35 | 530 | 460 | 390 |
45 | 575 | 490 | 415 |
60 | 665 | 555 | 470 |
100 | 775 | 655 | 555 |
120 | 825 | 700 | 595 |
140 | 870 | 735 | 625 |
160 | 905 | 765 | 650 |
180 | 945 | 800 | 680 |
