NOTE
※ Please be aware that there may be deviation and tolerance in noted measurements.
※ The breaking load is approximate, and will change depending on usage situation and environment. In addition, in the event test data is required, please make a separate request, and extra cost will be generated.
※ Specifications may change without prior notification.
※ Photos could show our products very clearly, but there may be a little difference in style because of different specifications.
※ Please do not copy and reproduce the contents of our website without any express permission.

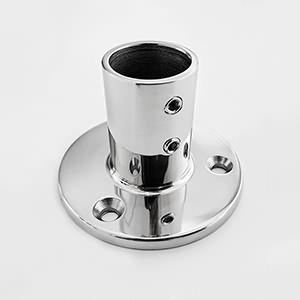

Straight Round Base
- Item Number: 836
- Size: Φ22-Φ32
- Material: AISI316
- Product Description: Straight round base features a 90 degree angle and two set screws for quick and easy installation. This stanchion base is made from grade 316 stainless steel for maximum corrosion resistance and durability. These bases are ideal for sailboat and powerboat railings.
Product Specifications
Size(TubeΦ) | A | B | C | T | H |
---|---|---|---|---|---|
mm | mm | mm | mm | mm | mm |
22 | 22.7 | 28 | 66 | 4.5 | 45.5 |
25 | 25.8 | 32.2 | 69 | 4.5 | 46 |
30 | 30.7 | 36.5 | 72 | 4.5 | 46 |
32 | 32.2 | 39 | 75 | 4.5 | 42 |
