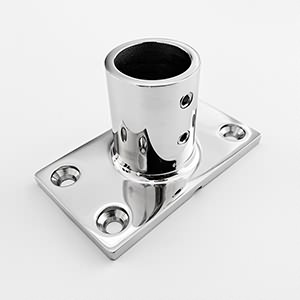

Straight Square Base
- Item Number: 838
- Size: Φ22-Φ32
- Material: AISI316
- Product Description: Straight square base features a 90 degree angle and two set screws for quick and easy installation. This stanchion base is made from grade 316 stainless steel for maximum corrosion resistance and durability. These bases are ideal for sailboat and powerboat railings.
Product Specifications
Size(TubeΦ) | A | B | C | D | H |
---|---|---|---|---|---|
mm | mm | mm | mm | mm | mm |
22 | 22.4 | 28.5 | 76 | 44 | 45 |
25 | 25.8 | 31.8 | 82 | 47.5 | 45.5 |
30 | 30.7 | 36.5 | 86 | 52 | 46 |
32 | 32.5 | 40 | 87 | 52 | 46 |
