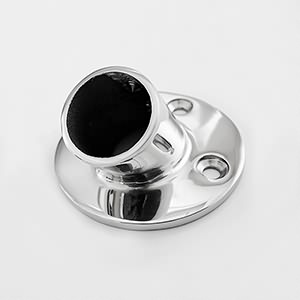

Inclined Round Base

Item Number: 837
Size: Φ22-Φ32
Material: AISI316
Product Description: Inclined round base features 30°/45°/60° three kinds of degree angles and two set screws for quick and easy installation. These bases are ideal for sailboat and powerboat railings.

Product Specifications

Size(TubeΦ)	A	B	C	T	F	H
mm	mm	mm	mm	mm	mm	mm
22×30°	22.8	29	65	5	30°	37
22×45°	22.5	29	66	5.5	45°	38
22×60°	22.5	29	66	5	60°	40
25×30°	25.8	32	72	5	30°	37
25×45°	25.8	32	72	5.5	45°	40
25×60°	25.8	32	70	5	60°	40
30×60°	30.5	37	72	5	60°	49
32×60°	32.7	40	72.5	5	60°	53
