NOTE

※ Please be aware that there may be deviation and tolerance in noted measurements.

※ The breaking load is approximate, and will change depending on usage situation and environment. In addition, in the event test data is required, please make a separate request, and extra cost will be generated.

※ Specifications may change without prior notification.

※ Photos could show our products very clearly, but there may be a little difference in style because of different specifications.

※ Please do not copy and reproduce the contents of our website without any express permission.

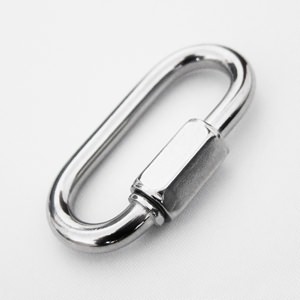

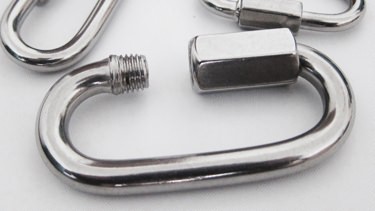

Quick Link

Item Number: 417
Size: 3.5mm-14mm
Material: AISI304 / AISI316
Product Description: Quick link is an ideal for connecting long and short link chain which widely used for marine, sports, climbing, architectural, industrial, security applications. Quick repair chain links in a variety of sizes to suit your requirements.

Product Specifications

Size(ΦS)	A	B	L	BL	WT	Price
mm	mm	mm	mm	kg	kg	SS304	SS316
3.5	4.5	10	36.5	190	0.010	$0.21	$0.25
4	5.5	11	42	560	0.012	$0.24	$0.30
5	6.5	13	50	730	0.021	$0.31	$0.41
6	7.5	15	60	1000	0.037	$0.38	$0.53
7	8.5	16	65	1360	0.060	$0.51	$0.73
8	10.5	18	75	1750	0.080	$0.66	$0.98
9	11.5	17	82	2300	0.110	$0.82	$1.24
10	12.5	21	91	2600	0.140	$1.04	$1.59
12	14.5	24	107	2800	0.230	$1.87	$2.96
14	17	26	125	3200	0.370	$3.03	$4.83
