Swivel Eye And Jaw

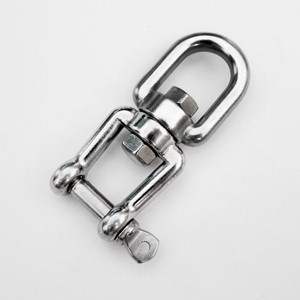

Swivel Eye And Jaw
  • Item Number: 313
  • Size: 6mm-19mm
  • Material: AISI304 / AISI316
  • Product Description: Swivel eye and jaw is used for some applications which need free rotation at one end or both ends. Such as fishing, mooring, traction...
Product Specifications
Swivel Eye And Jaw Drawing

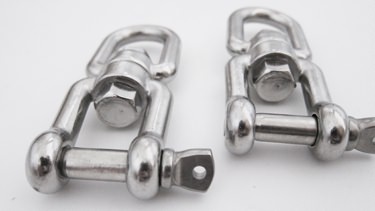

Swivel Eye And Jaw Detail
Size(ΦA) B C D E L BL WT
mm mm mm mm mm mm kg kg
6 15 11 6 12 66 1200 0.060
8 21 16 8 16 94 1900 0.150
10 26 22 10 20 118 3500 0.290
13 33 28 13 26 152 5000 0.600
16 45 37 16 32 188 8500 1.060
19 50 45 19 38 229 10000 1.880
