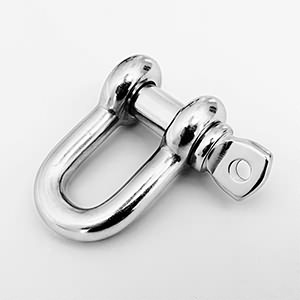

US Type Dee Shackle G210

Item Number: 302
Size: 3/16-2 1/2
Material: AISI304 / AISI316
Product Description: US type dee shackle G210 is widely used in USA. It offers a greater load strength because the diameter of the pin is bigger than body.

Product Specifications

Size	M	C	W	H	D	WLL	WT
inch	inch	inch	inch	inch	inch	tons	lbs
3/16	.25	.19	.38	.75	.56	1/3	.05
1/4	.31	.25	.47	.88	.61	1/2	.11
5/16	.38	.31	.53	1.03	.75	3/4	.17
3/8	.44	.38	.66	1.25	.91	1	.24
7/16	.50	.44	.75	1.44	1.06	1-1/2	.40
1/2	.62	.50	.81	1.63	1.19	2	.59
5/8	.75	.62	1.06	2.00	1.50	3-1/4	1.21
3/4	.88	.75	1.25	2.38	1.81	4-3/4	2.25
7/8	1.00	.88	1.44	2.81	2.09	6-1/2	3.16
1	1.13	1.00	1.69	3.19	2.38	8-1/2	4.75
1-1/8	1.25	1.13	1.81	3.58	2.69	9-1/2	6.75
1-1/4	1.38	1.25	2.03	3.94	3.00	12	9.06
1-3/8	1.50	1.38	2.25	4.38	3.31	13-1/2	11.63
1-1/2	1.62	1.50	2.38	4.81	3.63	17	15.95
1-3/4	2.00	1.75	2.88	5.75	4.19	25	26.75
2	2.25	2.00	3.25	6.75	4.85	35	42.31
2-1/2	2.75	2.62	4.13	8.00	5.69	55	71.75
