NOTE

※ Please be aware that there may be deviation and tolerance in noted measurements.

※ The breaking load is approximate, and will change depending on usage situation and environment. In addition, in the event test data is required, please make a separate request, and extra cost will be generated.

※ Specifications may change without prior notification.

※ Photos could show our products very clearly, but there may be a little difference in style because of different specifications.

※ Please do not copy and reproduce the contents of our website without any express permission.

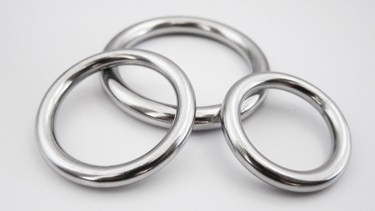

Welded Round Ring

Item Number: 601
Size: 5mm-10mm
Material: AISI304 / AISI316
Product Description: Welded round ring is widely used for marine, sports, climbing, architectural, industrial, security... The surface has been grinding treated, weld marks are not obvious.

Product Specifications

Size	ΦS	H	WT
mm	mm	mm	kg
5×25	5	25	0.010
5×30	5	30	0.010
5×35	5	35	0.020
5×40	5	40	0.020
5×45	5	45	0.030
5×50	5	50	0.030
6×30	6	30	0.020
6×35	6	35	0.030
6×40	6	40	0.030
6×45	6	45	0.040
6×50	6	50	0.040
6×55	6	55	0.040
6×60	6	60	0.050
8×40	8	40	0.060
8×45	8	45	0.060
8×50	8	50	0.070
8×55	8	55	0.070
8×60	8	60	0.080
8×65	8	65	0.090
8×70	8	70	0.090
8×75	8	75	0.100
9×50	9	50	0.090
9×60	9	60	0.100
9×70	9	70	0.120
9×80	9	80	0.140
10×50	10	50	0.100
10×60	10	60	0.130
10×70	10	70	0.150
10×80	10	80	0.170
10×90	10	90	0.190
10×100	10	100	0.210
