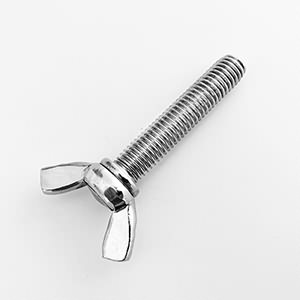

Wing Screws American Form
- Item Number: 529
- Size: M3-M10
- Material: AISI304 / AISI316
- Product Description: Wing screws american form is very useful because we could tighten them just with our hands, and we don't need to worry about looking for tools. In some cases, they can replace the normal bolts completely.
Product Specifications
Size(M) | L | K | dk | D | H | W |
---|---|---|---|---|---|---|
mm | mm | mm | mm | mm | mm | mm |
M3 | 8-16 | 8.5 | 2.5 | 7 | 3.5 | 18 |
M4 | 8-35 | 9 | 1.5 | 7 | 4 | 19 |
M5 | 8-45 | 12 | 1.9 | 9 | 5 | 25 |
M6 | 8-55 | 16 | 1.9 | 11 | 6 | 31 |
M8 | 12-60 | 19 | 2.4 | 14 | 8 | 37 |
M10 | 18-50 | 24 | 4 | 18 | 10 | 49 |
