NOTE

※ Please be aware that there may be deviation and tolerance in noted measurements.

※ The breaking load is approximate, and will change depending on usage situation and environment. In addition, in the event test data is required, please make a separate request, and extra cost will be generated.

※ Specifications may change without prior notification.

※ Photos could show our products very clearly, but there may be a little difference in style because of different specifications.

※ Please do not copy and reproduce the contents of our website without any express permission.

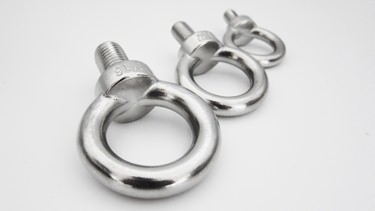

Lifting Eye Bolt JIS B1168

Lifting Eye Bolt JIS B1168
  • Item Number: 555
  • Size: M6-M20
  • Material: AISI304 / AISI316
  • Product Description: Lifting eye bolt JIS B1168 is the most widely used kind of rigging hardware in Japan and specifically suited for lifting some heavy objects like machine, furniture, electric motor, metal mold, distribution panel, appliance...
Product Specifications
Lifting Eye Bolt JIS B1168 Drawing
Lifting Eye Bolt JIS B1168 Detail
d1 d2 d3 d4 h l ΦD
mm mm mm mm mm mm mm
M6 13 25 15 27 14 5
M8 16 32.5 20 33 15 6.3
M10 20 41 25 42 18 8
M12 25 50 30 51 22 10
M16 30 60 35 61 27 12.5
M20 32 72 40 71 30 16
