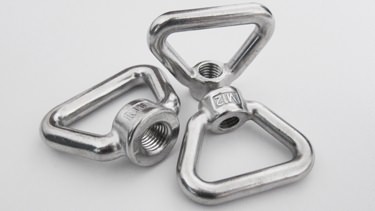

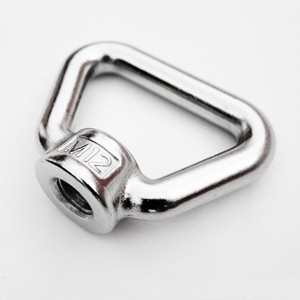

Bow Nut GB63

Item Number: 503
Size: M10-M30
Material: AISI304 / AISI316
Product Description: Bow nut GB63 is the most widely used kind of rigging hardware and specifically suited for lifting some heavy objects like machine, furniture, electric motor, metal mold, distribution panel, appliance...

Product Specifications

Size(A)	ΦB	C	D	E	ΦF	WT	Price
mm	mm	mm	mm	mm	mm	kg	SS304	SS316
M10	8	60	47	12	20	0.065	$0.67	$0.93
M12	10	65	52	15	23	0.110	$1.11	$1.55
M14	10	66	52	15	23	0.120	$1.25	$1.75
M16	12	75	60	18	29	0.188	$1.62	$2.27
M18	12	75	60	18	29	0.198	$1.92	$2.68
M20	13	85	71	22	35	0.280	$2.21	$3.09
M24	14	97	83	26	45	0.430	$3.68	$5.15
M30	16	110	120	35	59	0.830	$7.06	$9.89
