NOTE

※ Please be aware that there may be deviation and tolerance in noted measurements.

※ The breaking load is approximate, and will change depending on usage situation and environment. In addition, in the event test data is required, please make a separate request, and extra cost will be generated.

※ Specifications may change without prior notification.

※ Photos could show our products very clearly, but there may be a little difference in style because of different specifications.

※ Please do not copy and reproduce the contents of our website without any express permission.

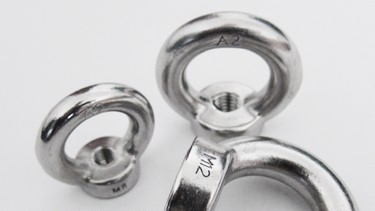

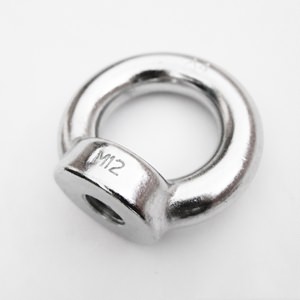

Lifting Eye Nut DIN582

Item Number: 502
Size: M6-M36
Material: AISI304 / AISI316
Product Description: Lifting eye nut DIN582 is the most widely used kind of rigging hardware and specifically suited for lifting some heavy objects like machine, furniture, electric motor, metal mold, distribution panel, appliance...

Product Specifications

d1	d2	d3	d4	h	e	ΦD	BL	WT	Price
mm	mm	mm	mm	mm	mm	mm	kg	kg	SS304	SS316
M6	17	28	16	30	8	6	1300	0.023	$0.40	$0.56
M8	20	35	20	35	8	8	2400	0.043	$0.42	$0.58
M10	25	45	25	44	10	10	4000	0.080	$0.71	$0.99
M12	29	53	30	52	12	12	5400	0.136	$1.21	$1.69
M14	30	53	30	52	11	12	-	0.126	$1.48	$2.06
M16	35	63	35	62	16	14	9000	0.234	$2.36	$3.30
M18	37	67	37	66	17	15	-	0.282	$2.73	$3.81
M20	40	71	40	70	18	16	13000	0.340	$4.86	$6.80
M24	47	87	48	87	18	20	18000	0.558	$8.83	$12.36
M30	55	104	54	104	30	25	26000	1.053	$17.70	$24.80
M36	75	126	70	126	30	28	-	2.080	$22.10	$30.90
M42	82	141	79	137	31.5	31	-	2.500	$29.00	$40.60
