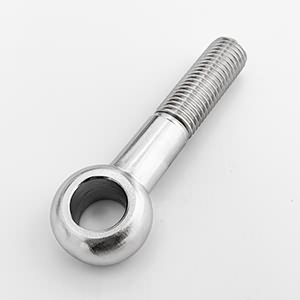

DIN444 Eye Bolt
- Item Number: 552
- Size: M5-M30
- Material: AISI304 / AISI316
- Product Description: Din444 eye bolt is widely used in marine, automobile, machine, industrial, architectural... The threaded part can be moved freely while its heade fixed by shaft pin.
Product Specifications
Size(A) | D | Φd | S | B (L≤125) | B (125<L≤200) | B (L>200) |
---|---|---|---|---|---|---|
mm | mm | mm | mm | mm | mm | mm |
M5 | 12 | 5 | 6 | 16 | - | - |
M6 | 14 | 6 | 7 | 18 | - | - |
M8 | 18 | 8 | 9 | 22 | 28 | - |
M10 | 20 | 10 | 12 | 26 | 32 | - |
M12 | 25 | 12 | 14 | 30 | 36 | 49 |
M16 | 32 | 16 | 17 | 38 | 44 | 57 |
M20 | 40 | 18 | 22 | 46 | 52 | 65 |
M24 | 45 | 22 | 25 | 54 | 60 | 73 |
M30 | 55 | 27 | 30 | 66 | 72 | 85 |
