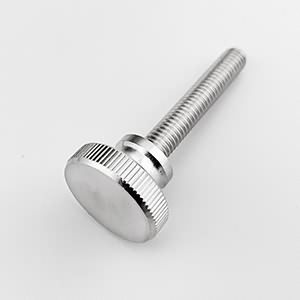

Knurled Thumb Screw High Type GB834
- Item Number: 553
- Size: M3-M10
- Material: AISI304 / AISI316
- Product Description: Knurled thumb screw high type GB834 is very useful because we could tighten them just with our hands, and we don't need to worry about looking for tools. In some cases, they can replace the normal nuts completely.
Product Specifications
Size(A) | ΦD | M | H | ΦB | L |
---|---|---|---|---|---|
mm | mm | mm | mm | mm | mm |
M3 | 11 | 2.8 | 7 | 6 | 6-40 |
M4 | 12 | 3 | 8 | 8 | 6-40 |
M5 | 16 | 4 | 10 | 10 | 6-60 |
M6 | 20 | 5 | 12 | 12 | 6-50 |
M8 | 24 | 6 | 16 | 16 | 10-50 |
M10 | 30 | 8 | 20 | 20 | 16-50 |
