NOTE

※ Please be aware that there may be deviation and tolerance in noted measurements.

※ The breaking load is approximate, and will change depending on usage situation and environment. In addition, in the event test data is required, please make a separate request, and extra cost will be generated.

※ Specifications may change without prior notification.

※ Photos could show our products very clearly, but there may be a little difference in style because of different specifications.

※ Please do not copy and reproduce the contents of our website without any express permission.

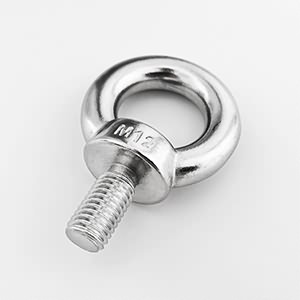

GB825 Lifting Eye Bolt

Item Number: 554
Size: M8-M36
Material: AISI304 / AISI316
Product Description: GB825 lifting eye bolt is the most widely used kind of rigging hardware in China and specifically suited for lifting some heavy objects like machine, furniture, electric motor, metal mold, distribution panel, appliance...

Product Specifications

Size(d1)	d2	d3	d4	h	e	l	ΦD	BL	WT	Price
mm	mm	mm	mm	mm	mm	mm	mm	kg	kg	SS304	SS316
M8	20	35	20	35	8	16	8	2400	0.045	$0.47	$0.66
M10	25	45	25	44	10	20	10	4000	0.095	$0.83	$1.16
M12	29	53	30	52	11	22	12	5400	0.161	$1.40	$1.96
M16	34	61	35	60	13	28	14	9000	0.273	$2.18	$3.06
M20	40	72	40	71	16	35	16	13000	0.444	$3.39	$4.75
M24	47	87	48	87	19	40	20	18000	0.733	$5.59	$7.83
M30	54	104	54	105	30	45	24	26000	1.400	$10.80	$15.20
M36	75	126	70	126	30	54	28	-	2.680	$22.10	$31.00
M42	82	141	79	137	31.5	65	31	-	3.400	$30.00	$42.00
