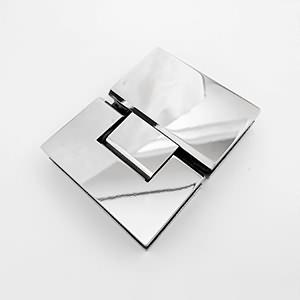

Glass Hinge 180°

Item Number: 914
Size: T=8mm-10mm
Material: AISI304 / AISI316
Product Description: Glass hinge 180° is made of stainless steel with all moving parts (pins and springs) in stainless steel. Using two hinges the hinge will hold up to 40kgs with a maximum door width of 800mm. Using three hinges the hinge will hold up to 50kgs with a maximum door width of 800mm. The hinges Swings 90 degrees in and 90 degrees Out. Self-centering when within 15 degree of closed position.
