NOTE

※ Please be aware that there may be deviation and tolerance in noted measurements.

※ The breaking load is approximate, and will change depending on usage situation and environment. In addition, in the event test data is required, please make a separate request, and extra cost will be generated.

※ Specifications may change without prior notification.

※ Photos could show our products very clearly, but there may be a little difference in style because of different specifications.

※ Please do not copy and reproduce the contents of our website without any express permission.

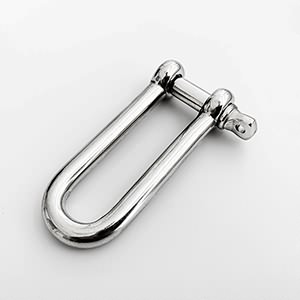

Long Dee Shackle

Item Number: 305
Size: M4-M16
Material: AISI304 / AISI316
Product Description: Long dee shackle is used for some special condition, the length is longer than normal shackle. It's made by forging, so it offers a greater load strength.

Product Specifications

Size(M)	C	H	W	D	BL	WT
mm	mm	mm	mm	mm	kg	kg
M4	4	30	8	8	500	0.010
M5	5	37	10	10	800	0.018
M6	6	45	12	12	1100	0.025
M8	8	60	16	16	2000	0.095
M10	10	75	20	20	3200	0.180
M12	12	90	24	24	4400	0.270
M14	14	105	28	28	5600	0.380
M16	16	120	32	32	8000	0.640
