NOTE
※ Please be aware that there may be deviation and tolerance in noted measurements.
※ The breaking load is approximate, and will change depending on usage situation and environment. In addition, in the event test data is required, please make a separate request, and extra cost will be generated.
※ Specifications may change without prior notification.
※ Photos could show our products very clearly, but there may be a little difference in style because of different specifications.
※ Please do not copy and reproduce the contents of our website without any express permission.

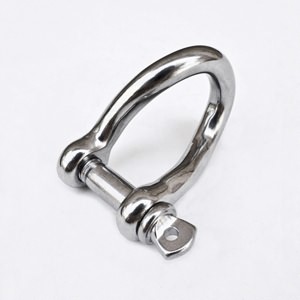

Twisted Shackle
- Item Number: 306
- Size: M4-M12
- Material: AISI304 / AISI316
- Product Description: Twisted shackle can change the connecting direction by 90 degrees, which can make it reaching a special application. It's made by forging, so it offers a greater load strength.
Product Specifications
Size(M) | C | H | W | D | BL | WT |
---|---|---|---|---|---|---|
mm | mm | mm | mm | mm | mm | mm |
M4 | 4 | 23 | 8 | 8 | 500 | 0.010 |
M5 | 5 | 28 | 10 | 10 | 800 | 0.020 |
M6 | 6 | 33 | 12 | 12 | 1100 | 0.030 |
M8 | 8 | 44 | 16 | 16 | 2000 | 0.070 |
M10 | 10 | 55 | 20 | 20 | 3200 | 0.130 |
M12 | 12 | 66 | 24 | 24 | 4400 | 0.230 |
