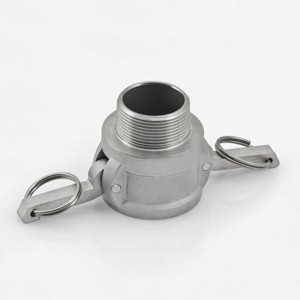

Male Coupler (B-type)

Item Number: 802
Size: 15mm-150mm
Material: AISI304 / AISI316
Product Description: Male coupler (B-type) quick connector has two pull ears on each end, belonging to the female end. One end is directly connected to the male end and the other end is connected with an external thread.

Product Specifications

Size	d0	D(Rc)	H	h1	G
mm	mm	inch	mm	mm	mm
15	14	1/2	52	33	53
20	19	3/4	52	33	53
25	25	1	61	39	62
30	30	1-1/4	68	45	80
40	38	1-1/2	71	47	87
50	50	2	78	50	97
65	63	2-1/2	86	55	110
80	75	3	87	56	135
100	100	4	89	58	165
125	122	5	102	60	185
150	145	6	118	72	220
