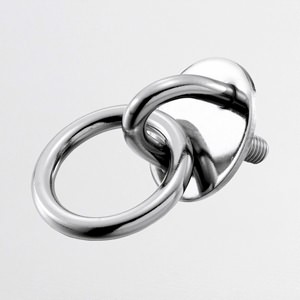

Round Eye Plate With Thread And Ring

Round Eye Plate With Thread And Ring
  • Item Number: 711
  • Size: 5mm-8mm
  • Material: AISI304 / AISI316
  • Product Description: Round eye plate with thread and ring is commonly used as deck fittings on boats and yachts, hard-wearing and versatile with uses ranging from vehicle trailers to home DIY.
Product Specifications
Round Eye Plate With Thread And Ring Drawing
Size(ΦD) A H W T B L Thread WT
mm mm mm mm mm mm mm mm kg
5 33 13 14 2.5 19 30 M6 0.035
6 40 19 18 2.5 20 35 M8 0.060
8 50 20 22 3 27 40 M10 0.114
