※ Please be aware that there may be deviation and tolerance in noted measurements.
※ The breaking load is approximate, and will change depending on usage situation and environment. In addition, in the event test data is required, please make a separate request, and extra cost will be generated.
※ Specifications may change without prior notification.
※ Photos could show our products very clearly, but there may be a little difference in style because of different specifications.
※ Please do not copy and reproduce the contents of our website without any express permission.

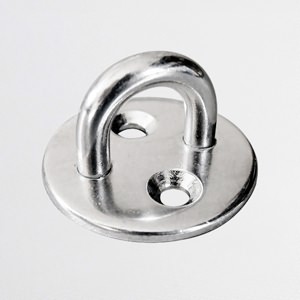

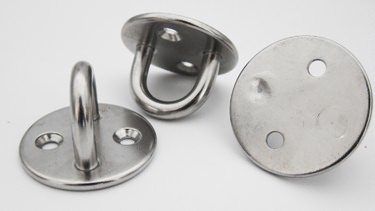

Round Eye Plate
- Item Number: 708
- Size: 5mm-8mm
- Material: Material: AISI304 / AISI316
- Product Description: Round eye plate is commonly used as deck fittings on boats and yachts, hard-wearing and versatile with uses ranging from vehicle trailers to home DIY.
| Size(ΦD) | A | H | W | T | d | WT | Price | |
|---|---|---|---|---|---|---|---|---|
| mm | mm | mm | mm | mm | mm | kg | SS304 | SS316 |
| 5 | 33 | 12 | 14 | 2.5 | 4.2 | 0.020 | $0.35 | $0.50 |
| 6 | 40 | 17 | 19 | 2.5 | 5.2 | 0.035 | $0.40 | $0.60 |
| 8 | 50 | 21 | 23 | 3 | 5.2 | 0.070 | $0.55 | $0.80 |
-
