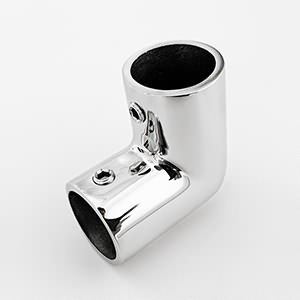

Corner Elbow
- Item Number: 853
- Size: Φ22-Φ32
- Material: AISI316
- Product Description: Corner elbow features 90 degree angles and two screws for quick and easy installation. This stanchion corner fitting is made from grade 316 stainless steel for maximum corrosion resistance and durability. These corner elbows are ideal for sailboat and powerboat railings.
Product Specifications
Size(TubeΦ) | A | B | C | D |
---|---|---|---|---|
mm | mm | mm | mm | mm |
22 | 50 | 50 | 22.6 | 28.6 |
25 | 51 | 51 | 25.6 | 31.6 |
30 | 54 | 54 | 30.6 | 36.5 |
32 | 58 | 58 | 32.5 | 39.5 |
